Thermic Fluid Heater & Steam Boiler

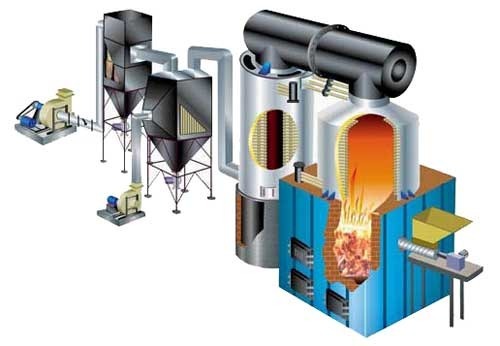

Thermic Fluid Heater

We Supply Thermic Fluid Heaters suitable for various process heating applications on fuel oil or fuel gas. Oil or gas fired design is the most compact design and offers efficiency as high as 92% with external air preheater. The thermic fluid temperatures offered can provide outlet temperature of 380°C for processes like waste oil distillation

Construction Features:

• High Heat Resistant Steel Tubes: BS 3059 P-1 or Even Alloy Steels as Per requirements
• Seamless Pipes: SA106 Gr. B SCH40 For temperatures Upto 340°C
• The System is 3 Pass On Flue Gas Side, which Ensures Optimum Heat Transfer with Counter Current Flow Principle
• Thermic Fluid Heaters are Designed for all Commercial & Special Fuels Available In Market for Combustion
• Fuels Like: Diesel / Furnace Oil (HFO) / Natural Gas / LPG

Product Features

• High capacity heating system
• Multi-fuel option – heavy oils, light oils and gases
• Requires very little maintenance
• Over-bed and under-bed fuel firing systems can be incorporated
• Large in-bed and convective heat transfer area

Operating Range

• Capacities: from 0.1 million kcal/hr to 12.0 million kcal/hr
• Temperature: up to 385ºC
• Firing fuels: heavy oils, light oils and gases
• Efficiency: 85 % (+/-2%) on NCV

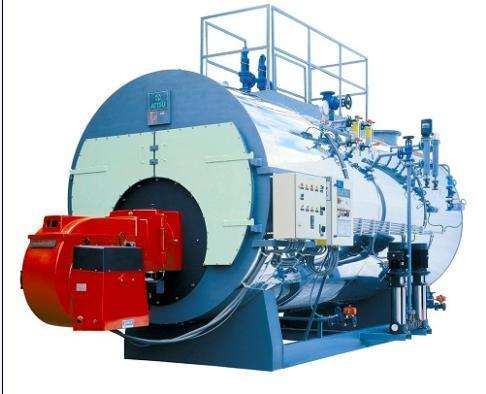

Steam Boiler

Industrial steam Boilers up to 6 t/h

• Maximum capacity ranging from 1,300 kg/h to 6,000 kg/h
• Maximum steam pressure from 14 barg to 25 barg
• Duel Fuel burner (natural gas or light fuel oil)
• Up to 72 hours of unsupervised operation
• No special convoy required for boilers up to 6,000 kg/h
• Optional accessories for a complete set-up

Industrial steam Boilers up to 16 t/h

• Maximum capacity ranging from 12,000 kg/h to 16,000 kg/h
• Maximum steam pressure from 22 barg to 25 barg
• Duel Fuel burner (natural gas or light fuel oil)
• Up to 72 hours of unsupervised operation
• Optional accessories for a complete set-up
