PDS Technosales - distributors And Traders

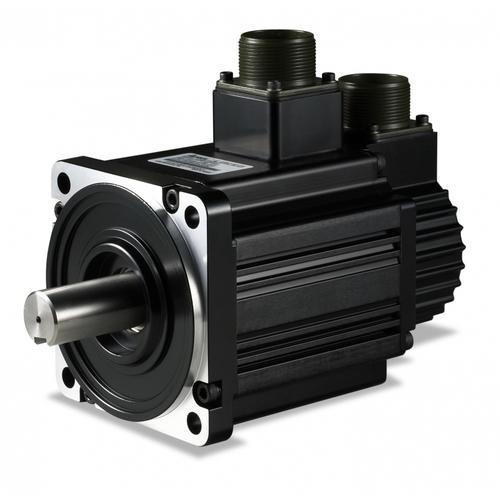

Range and Specifications : 30W To 55 KW

Choice of Low Inertia, Middle Inertia and High Inertia Motors
Very Good Peak torque performance (approx 300 %) for Longer period of time to help in quick acceleration
17 bit Incremental encoder (resolution-131072 PPR) as standard with Serial Interface to Servo Pack. Option for absolute encoder
Choice of Servo Drives with 200 V & 400 V.
Speed Control, Position Control, Torque control and Contact Speed as standard.
On the Fly Mode change through digital input possible as standard
Analog/ Pulse train reference as standard with network option of Mechatrolink-II, Profibus, DeviceNet.

Excellent Cost to performance ratio for Position Control

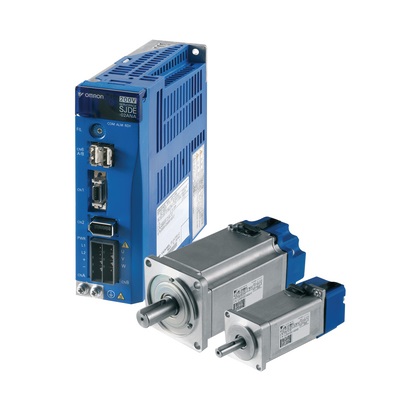

Industry's first plug and play type servo drive
Achieve optimum servo performance without gain setting and tuning parameters ( No gain tuning and parameter setting required)
Great stability despite of load changes
Encoder resolution: 10000 PPR
Option for ServoMeter with ElectroMagnetic Brake.
Selectable Electronic Gear 1000 PPR, 2500 PPR, 5000 PPR and 10000 PPR
Option of Mechatrolink-II Communication

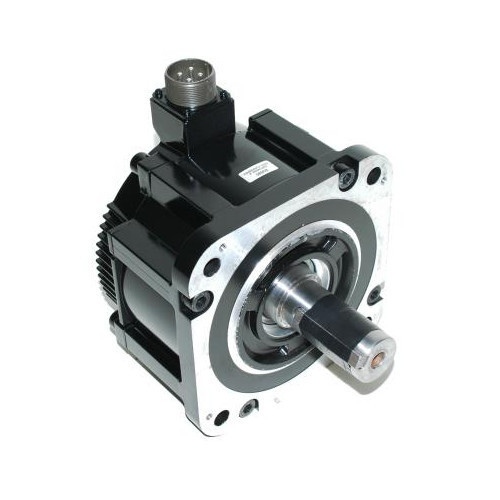

Ratings & Specifications : 50 W to 4.4 KW

Very High Performance Servo with outstanding frequency response of 1600 Hz ( best in Industry)
Choice of Low Inertia, Middle Inertia and High Inertia motors.
Very Good Peak torque performance (approx 350 %) for Longer period of time to help in quick acceleration
20 bit Incremental encoder (resolution-1048576 PPR) as standard with Serial Interface to Servo Pack.
Max Speed upto 6000 rpm
Faster Setup, Simple tuning process with tuneless function
